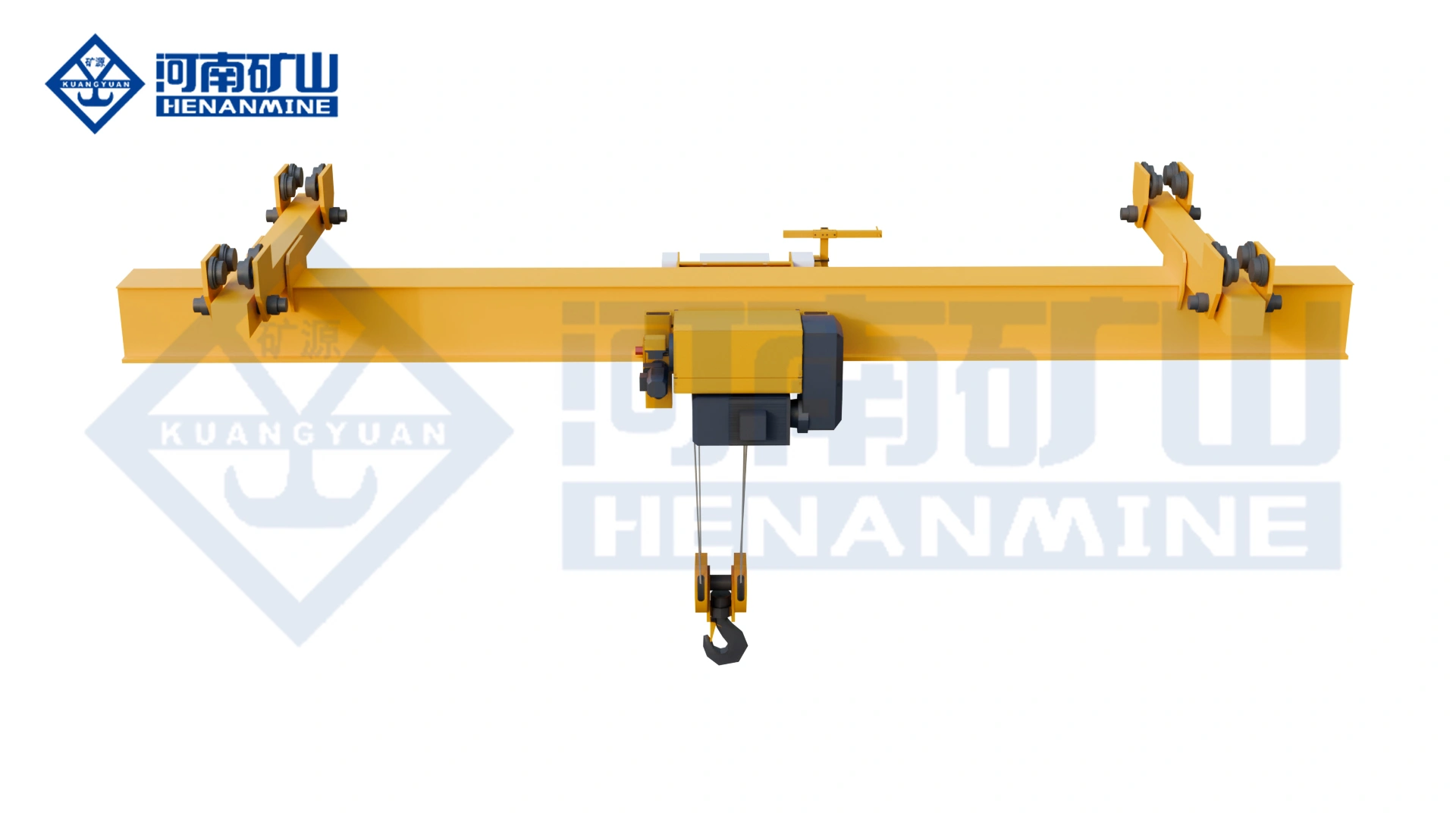

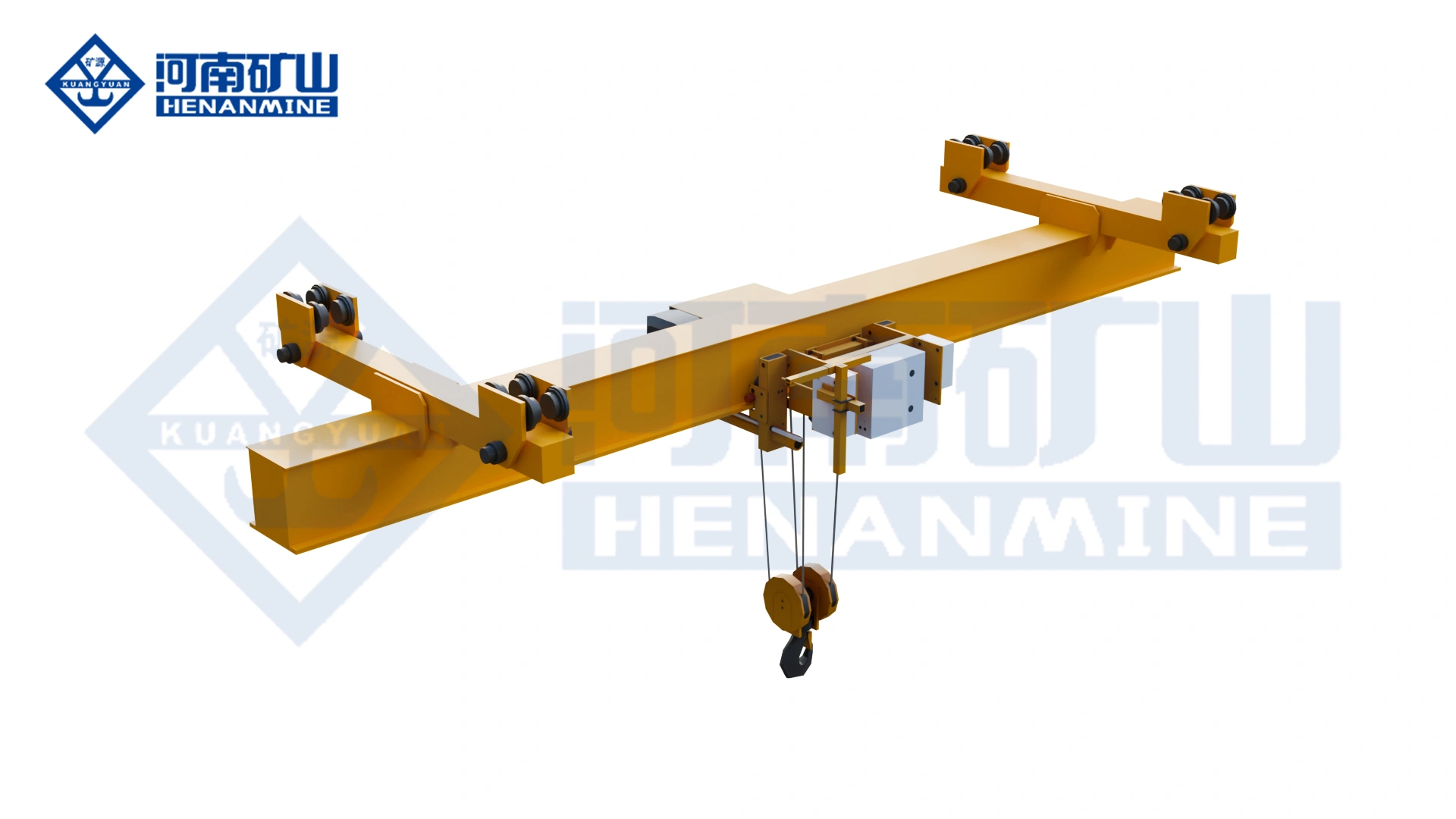

The New Type Electric Single-Girder Suspended Crane is an advanced overhead lifting solution manufactured by Henan Mine (Model: LX-NEW). This crane is specifically designed as a space-optimized, lightweight material handling system for facilities where floor space is at a premium or building structures cannot support traditional floor-mounted cranes .

Unlike conventional top-running cranes that operate on rails mounted on top of runway beams, the suspended (underslung) configuration features the crane running on the bottom flange of I-beam tracks that are suspended directly from the ceiling or roof structure . This unique design eliminates the need for floor-mounted support columns, freeing up valuable workspace below and maximizing floor utilization .

The crane consists of a single I-beam or box-section main girder, end carriages with suspension devices, an electric hoist (typically CD1/MD1 wire rope type), and an integrated electrical control system . The electric hoist travels along the lower flange of the main beam's I-beam to complete lifting operations, featuring a dexterous structure that is easy to install and maintain

This new‑generation suspended crane adopts optimized main girder and end carriage structure, with lighter dead weight and higher rigidity. Designed for low‑roof factories, compact workshops, and logistics warehouses, it runs suspended under roof beams without occupying floor space. Ideal for light‑duty, frequent material handling and production line transport. Not suitable for flammable, explosive or corrosive environments.

Core Applications:
1.The New Type Electric Single-Girder Suspended Crane is widely used in light to medium-duty material handling across various industries:
2.Manufacturing Workshops: Parts assembly lines, component handling, and production material supply
3.Warehouses & Logistics Centers: Loading, unloading, stacking, and moving finished goods and raw materials
4.Food Processing Industry: Handling raw materials and packaging finished products with hygienic operation
5.Assembly Workshops & Laboratories: Precisely positioned material handling and component assembly
6.Automotive Industry: Handling engines, transmissions, chassis components, and other heavy parts
7.Electronics Manufacturing: Handling sensitive electronic components with smooth, precise control
8.Maintenance & Repair Facilities: Lifting and positioning machinery and equipment for servicing
