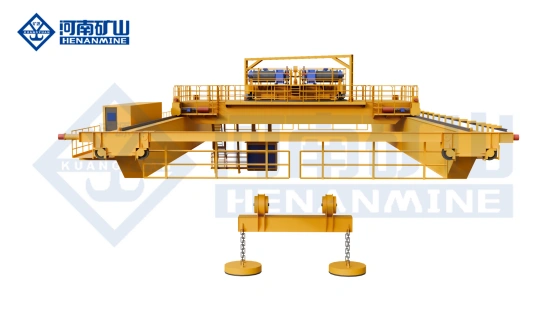

The Upper Rotating Electromagnetic Hanging Beam Bridge Crane is a specialized overhead lifting solution manufactured by Henan Mine, featuring a hanging beam mounted above the main girder that can rotate horizontally up to 270°, enabling multi-angle material handling for complex steel plate, section steel, coil, and billet lifting tasks . This crane consists of a box-shaped bridge frame, cart running mechanism, upper and lower trolleys, electromagnetic hanging beam, electrical equipment, and optional rainproof gear for outdoor use, with the upper trolley driving beam rotation while the lower trolley enables lateral movement .

The hanging beam features electric telescopic adjustment for varying material lengths and stepless magnetic force control, allowing operators to handle different steel specifications efficiently without changing lifting attachments . Working duty ranges from A5 to A8 with lifting capacities from 5+5 to 25+25 tons, spans from 10.5 to 34.5 meters, and lifting heights from 12 to 28 meters, with power supply customizable from 220V to 660V . Optional features include variable frequency speed regulation (1:10 or greater), overload alarm, PLC control, fault detection/display/recording systems, wireless remote control, and emergency power-off magnetic retention for load safety during power outages

It is widely used in steel service centers, storage yards, steel mills, heavy manufacturing workshops, ports, and warehouses. Typical specifications include lifting capacity from (5+5) to (25+25) tons, span from 10.5 to 35 meters, lifting height from 8 to 20 meters, duty class A6 to A7, beam rotation speed 1.36–1.85 r/min, lifting speed 12.4–16 m/min, trolley speed 39–48 m/min, crane speed 85–107 m/min, power supply 380V/50Hz three-phase AC, and ambient temperature range from -25°C to +50°C.

Core Application – Upper Rotating Electromagnetic Hanging Beam Bridge Crane
1.Steel Mills & Rolling Mills – Efficiently lifts and stacks steel plates, slabs, billets, coils, and section steel at elevated temperatures (up to 650°C), with 270°
2.rotation enabling turning and cross-stacking in storage yards .
3.Shipyards & Marine Construction – Handles large steel plates and structural sections for hull fabrication, with rotating beam allowing precise positioning and alignment of long, irregular components in assembly bays .
4.Port & Terminal Steel Yards – Loads and unloads steel coils, plates, and structural steel from vessels and rail cars, while horizontal rotation enables flexible storage arrangement in congested yard layouts .
5..Steel Service Centers – Positions steel plates and coils for shearing, slitting, and blanking lines with telescopic beam adjusting magnet spacing to match material dimensions .
6.Heavy Machinery Workshops – Transfers large components such as machine beds, press frames, and castings requiring multi-angle positioning during assembly, with PLC control enabling complex handling sequences . Automotive & Aerospace Fabrication – Moves large stampings, chassis components, and fuselage sections with anti-swing rotation and precise magnetic lift control, reducing handling time and component damage risk .
