QP model overhead crane is composed with girder frame, crane travelling device, and Two individual trolley with electromagnet and grab separately. The crane is equipped with grab and electromagnet which makes the works more efficiency and makes the crane usage more widely in customer’s working site.

The prototype is a general-purpose bridge crane with double main beams, single trolley, and main and auxiliary lifting. The main beam and end beam are both box structures, while the trolley frame is of plate welded structure. The main hoisting mechanism is a double-winch structure. Each winch mechanism is composed of one motor, one reducer and one brake. The two identical winch mechanisms respectively control the support rope and the opening and closing rope of the grab. The auxiliary lifting mechanism consists of one motor, one reducer and two brakes.

The lifting gear is a hook with an electromagnetic suction cup hanging under it. One set of trolley running mechanism and two sets of trolley running mechanism, both composed of motors, reducers and brakes. The lifting device consists of a grab bucket and an electromagnetic suction cup. Driver's cab and remote control operation.

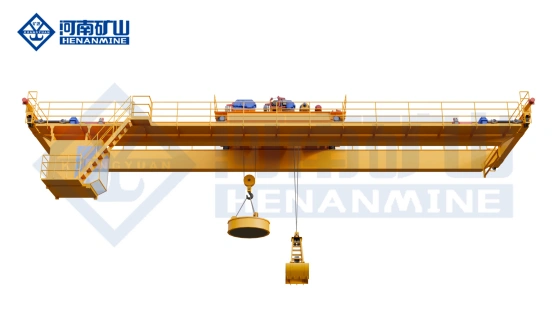

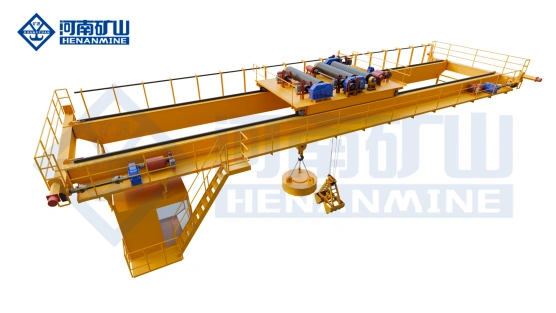

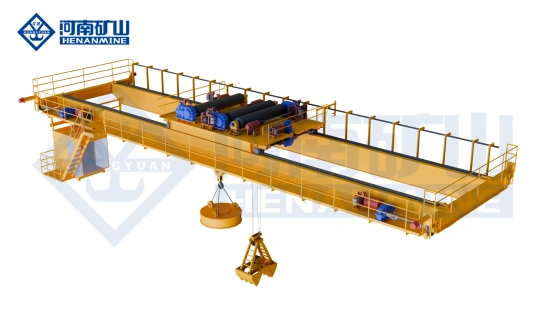

The Grab Bucket Electromagnetic Dual-Purpose Bridge Crane is a specialized 2-in-1 overhead crane designed for facilities that handle both bulk materials and ferrous steel products. This crane features two independent lifting systems on a single trolley – a grab bucket for loose bulk materials and an electromagnetic lifter for ferrous materials – allowing operators to switch between the two attachments as needed, eliminating the need for multiple cranes and maximizing equipment utilization.


Core Applications – Grab Bucket Electromagnetic Dual-Purpose Bridge Crane
1.Steel Mill Scrap Yards – Uses the grab bucket to unload bulk scrap from rail cars and the electromagnet to sort and load ferrous scrap into furnace charging buckets.
2.Port & Terminal Bulk-Storage Facilities – Employs the grab to unload coal or ore from vessels, while the electromagnet handles steel coils and plates from the same ship.
3.Recycling & Scrap Processing Plants – Grabs mixed scrap materials with the bucket, then uses the magnet to separate ferrous metals from non-ferrous debris for baling or shearing.
4.Warehouse & Distribution Centers – Transfers bulk materials such as grain or fertilizer with the grab, and switches to the magnet for handling steel drums, pallets, or structural components.
5.Foundry Raw Material Yards – Uses the grab to stockpile sand, coke, and limestone, while the electromagnet moves pig iron and steel returns to furnace charging areas.
6.Power Plant Coal & Ash Handling – Unloads coal from trains with the grab and uses the electromagnet to remove tramp iron from coal before crushing, plus handles steel equipment during plant maintenance.

Safety protection system:
1. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
2. Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device
3. Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling
4. All movements can be switched off by actuating the emergency-off switch at the control station via a main contact
5. High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling
